标准分辨率                                          1920 x 1080
最大支持分辨率                                    1920 x 1200
亮度                                                   2500 lm
屏幕比例                                             16:9
兼容屏幕比例                                       4:3
对比度                                                20,000:1
投射比                                                1.07 到 1.45
数字变焦                                             2x
垂直楔形校正                                      -30°/+30°
水平楔形校正                                      -30°/+30°
垂直频率                                             120 Hz
水平频率                                             100 kHz
最小垂直同步                                       24 Hz
最小水平同步                                       15 kHz
色彩                                                   10.7亿色
投影透镜
透镜类型                                            手动对焦
镜头参数                                            F/2.5
最大光圈值                                         F/2.93
最小对焦长度                                      15.98 mm
最大对焦长度                                      21.42 mm
最小对角线图像尺寸                             787.40 mm
最大对角线图像尺寸                             7.62 m
投影距离                                            1 m
投影最大距离                                      7.10 m
光学变焦                                            1.4x
灯
灯类型                                               UHP
灯泡数目                                            1
灯功率                                               260 W
一般模式灯寿命                                   3000 小时
经济模式灯寿命                                   6500 小时
ExtremeEco 模式灯泡寿命                     7000 小时

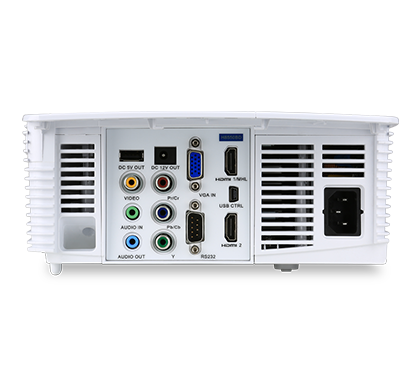

接口类型
HDMI 数量                                           2
HDMI                                                 是
USB                                                   是
连接器类型                                        USB迷你B式
复合视频                                             是
分量视频                                             是
VGA 输入口                                         是
音频线路输入口                                    是
音频线路输出口                                    是
技术参数
投影系统                                            DLP
投影方式                                            前面
                                                        背面
                                                        顶部

视频兼容                                            EDTV
                                                        HDTV
                                                        NTSC
                                                        PAL
                                                        SDTV
                                                        SECAM

与计算机兼容                                      Mac PC
                                                        Windows PC

3D功能                                              DLP 3D
音频
扬声器数量                                        1
扬声器输出功率                                  10 W
扬声器输出模式                                  Mono
电源
电源                                                100 V AC~240 V AC
输入电压                                          120 V AC
                                                      230 V AC

操作功耗                                          325 W
运行时耗电量（节能模式下）               270 W
物理特性
风扇噪音                                          28 dB 大约 经济模式
                                                      34 dB 大约 标准模式

温度                                                0 °C 到 40 °C
湿度                                                80% 最大 相对湿度
重量                                                3.10 kg
